Mobile UI Overview

This tutorial explains the basic structure of the mobile user interface (Mobile UI) of the webvis-app viewing a 3D Space. The figure shows the most important UI components.

Click on the respective links for more detailed information.

ui_overview

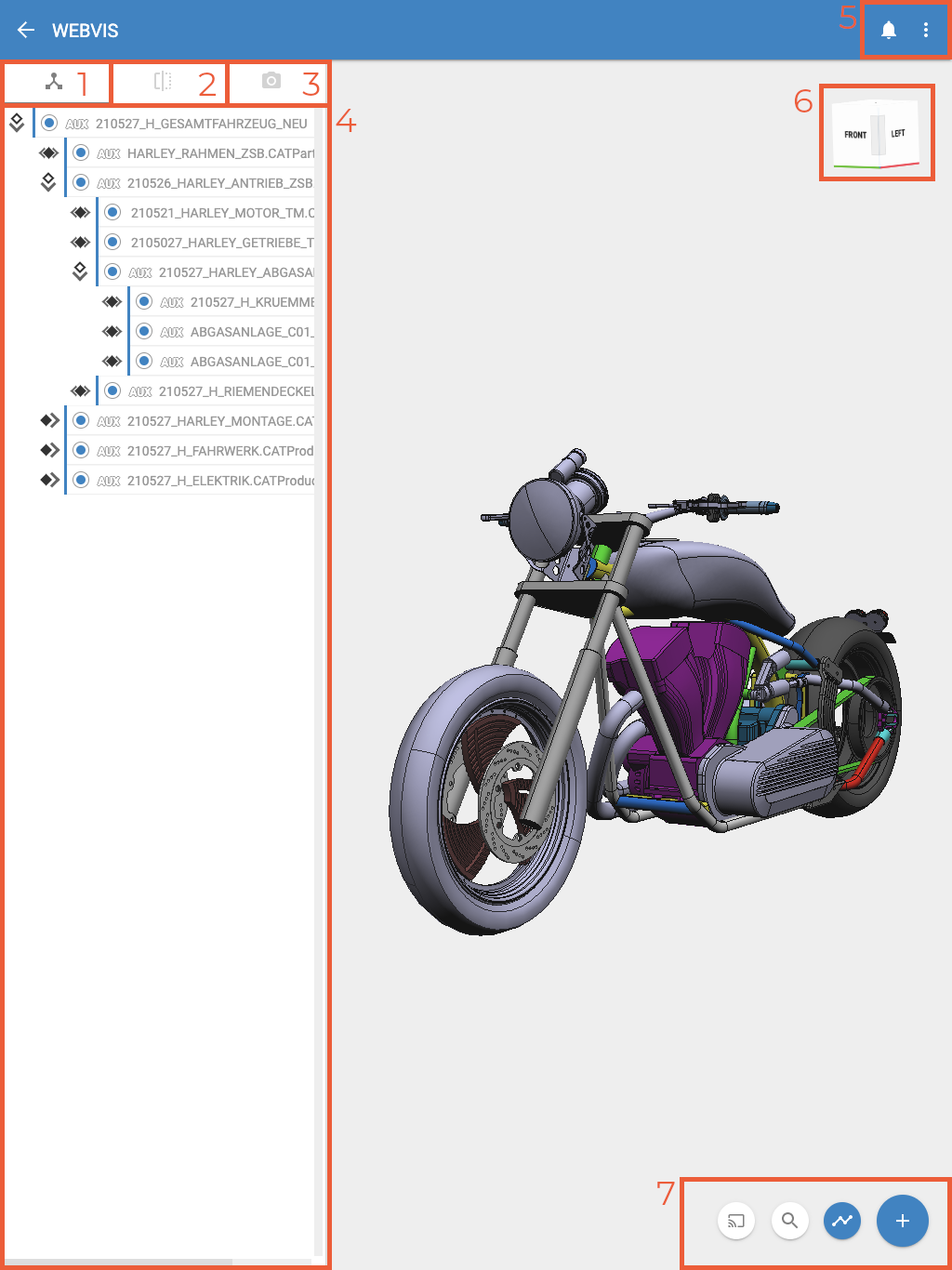

  1. Tree View tab.

  2. Clipplane tab.

  3. Snapshot tab.

  4. Tree View of the model.

  5. Notifications and Context Menu

  6. Gizmo for orientation.

  7. Submenu for different Tools. See Mobile UI Tools.

Mobile Context Menu

contextMenu

The Context Menu button contains three functions: 1. Showing all parts. 2. Hiding all parts. 3. Selecting all parts.

Furthmore it links to the Settings and about dialogs.

Settings

settingsDialog

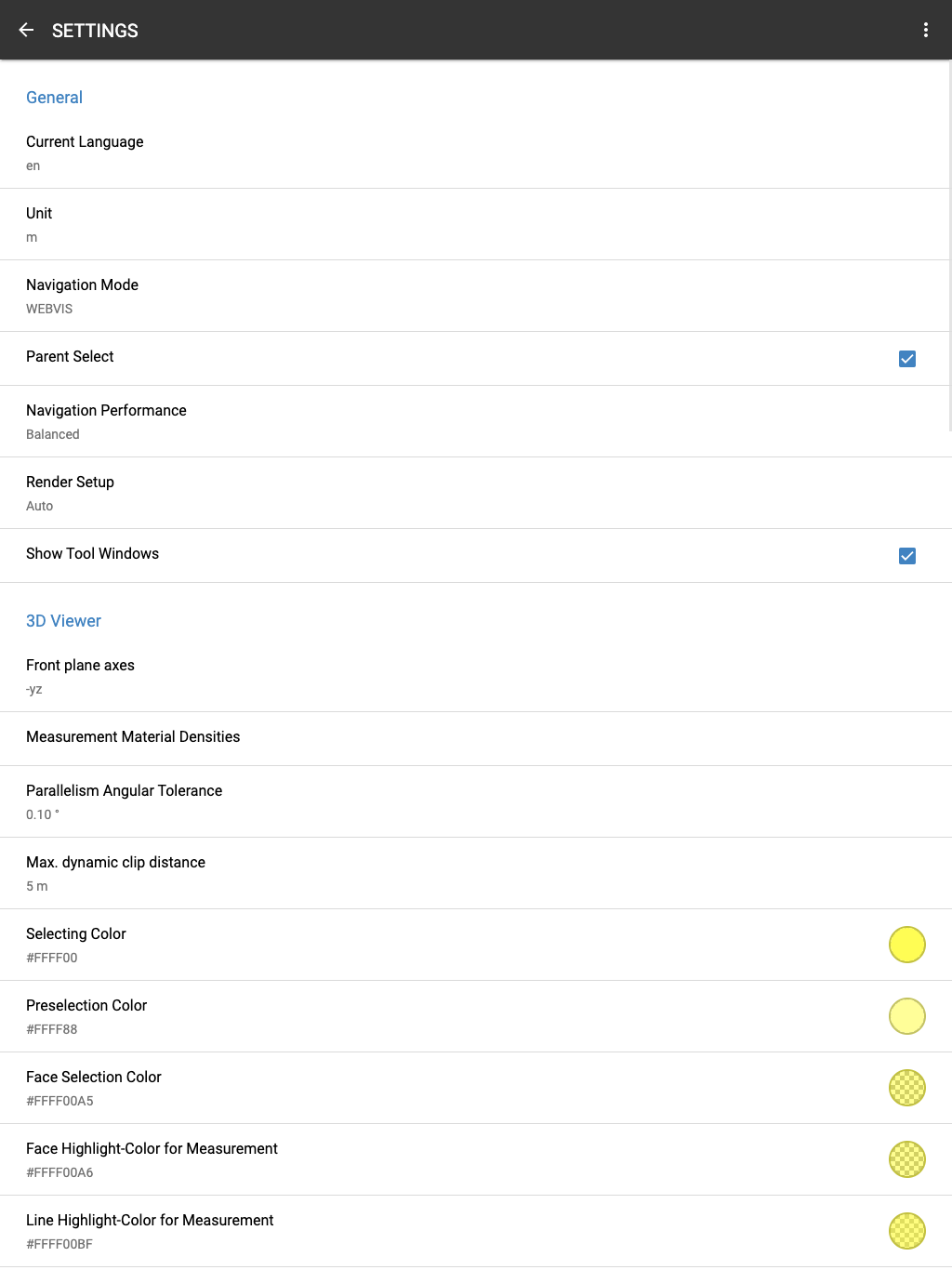

The dialog shows the various settings and configurations, which can be set and edited.

Tools

The Mobile UI Tool menu shows different functions and tools.

tools

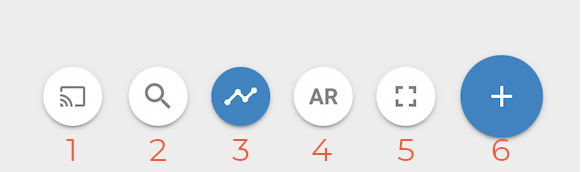

  1. Button to create or join a session. Refer to the Session tutorial for more information.

  2. FitView: Fits the view to the model.

  3. Changes the renderMode to FacesTopology, see RenderMode

  4. Augmented Reality (AR) button.

  5. Full screen mode (not available on iOS)

  6. Add menu for data, clipplanes and snapshots. (See below.)

addMenu

The added data is shown in the treeView, wheras the clipplanes and snapshots are shown in the tool tab respectivly:

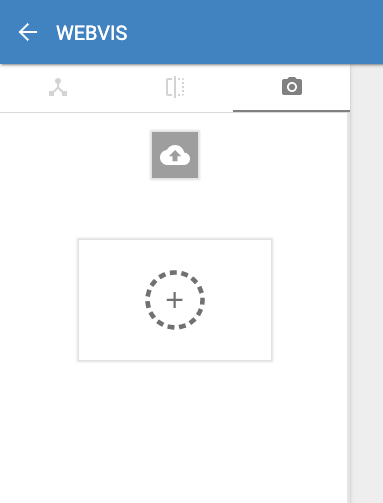

snap

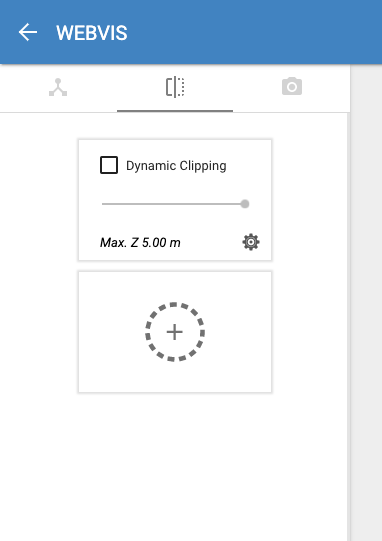

clip
