UI Overview

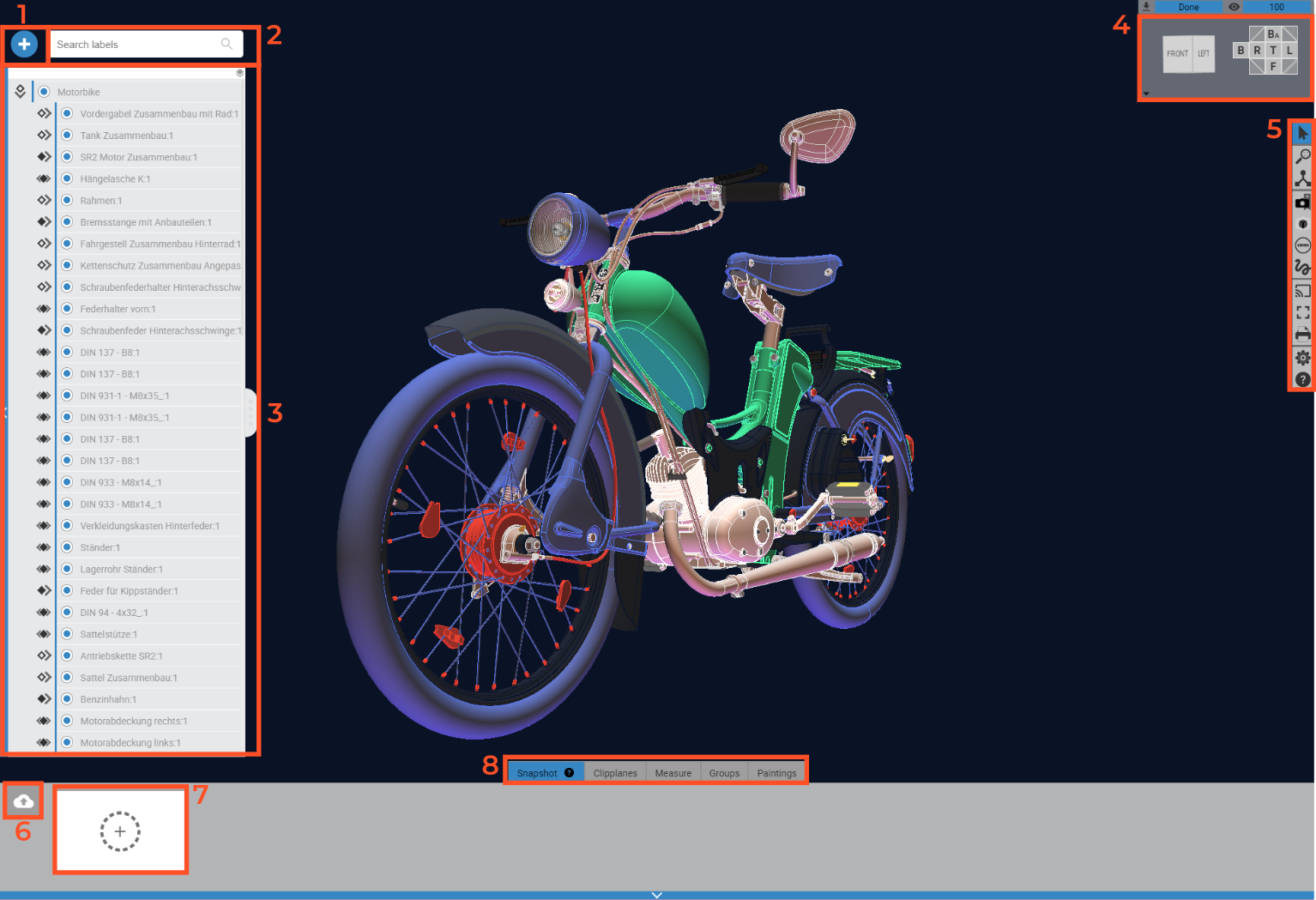

This tutorial explains the basic structure of the user interface (UI) of the webvis-app viewing a 3D Space. The figure shows the most important UI components.

Click on the respective links for more detailed information.

ui_overview2

  1. Button for adding Data

  2. Search bar. Enter text to search for node labels.

  3. Tree View of the model

  4. Perspective control panel

  5. Toolbar

  6. Save your Session

  7. Panel to add a Snapshot

  8. Submenu for different Tools. See section “UI Tools”.
